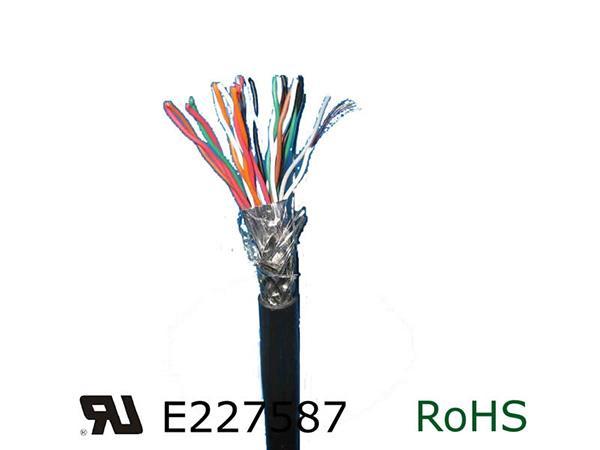

Cable multi-núcleo con revestimiento UL 2464
El cable multi-núcleo con revestimiento UL 2464 está disponible en colores verde, negro, anaranjado y morado. En cuanto a su estructura, el conductor esta hecho a base de cobre desnudo o estañado, el aislante a base de SR-PVC y el revestimiento es de PVC. Este producto es usado para alambrado interno o conexiones externas de equipos electrónicos como calculadoras de escritorio, dictáfonos o equipos de rayos X.
Información detallada
1. Voltaje nominal: 300V
2. Rango de temperatura de trabajo: -20°C ~80°C
3. Tolerancia del diámetro exterior: ±0.15mm
4. Voltaje de prueba: 1500V
| Conductor | Aislante | Revestimiento | |||
| Calibre AWG | Construcción del conductor NO.xΦ(mm) | Diámetro(mm) | Grosor del aislante (mm) | Grosor del revestimiento (mm) | Diámetro total (mm) |
| 28x3C | 7x0.127 | 0.25 | 0.80 | 3.70 | 28x3C |
| 28x4C | 7x0.127 | 0.25 | 0.80 | 3.90 | 28x4C |
| 28x5C | 7x0.127 | 0.25 | 0.80 | 4.20 | 28x5C |
| 28x6C | 7x0.127 | 0.25 | 0.80 | 4.50 | 28x6C |
| 28x7C | 7x0.127 | 0.25 | 0.80 | 4.50 | 28x7C |
| 28x8C | 7x0.127 | 0.25 | 0.80 | 4.80 | 28x8C |
| 28x9C | 7x0.127 | 0.25 | 0.80 | 5.10 | 28x9C |
| 28x10C | 7x0.127 | 0.25 | 0.80 | 5.20 | 28x10C |
| 28x15C | 7x0.127 | 0.25 | 0.85 | 5.80 | 28x15C |
| 28x25C | 7x0.127 | 0.25 | 1.00 | 7.60 | 28x25C |
| 28x37C | 7x0.127 | 0.25 | 1.00 | 8.30 | 28x37C |
| 28x50C | 7x0.127 | 0.25 | 1.00 | 9.50 | 28x50C |
| 26x3C | 7x0.16 | 0.25 | 0.80 | 3.90 | 26x3C |
| 26x4C | 7x0.16 | 0.25 | 0.80 | 4.20 | 26x4C |
| 26x5C | 7x0.16 | 0.25 | 0.80 | 4.50 | 26x5C |
| 26x6C | 7x0.16 | 0.25 | 0.80 | 4.80 | 26x6C |
| 26x7C | 7x0.16 | 0.25 | 0.80 | 4.80 | 26x7C |
| 26x8C | 7x0.16 | 0.25 | 0.80 | 5.10 | 26x8C |
| 26x9C | 7x0.16 | 0.25 | 0.80 | 5.40 | 26x9C |
| 26x10C | 7x0.16 | 0.25 | 0.80 | 5.70 | 26x10C |
| 26x15C | 7x0.16 | 0.25 | 0.85 | 6.40 | 26x15C |
| 26x25C | 7x0.16 | 0.25 | 1.00 | 8.00 | 26x25C |
| 26x37C | 7x0.16 | 0.25 | 1.00 | 9.20 | 26x37C |
| 26x50C | 7x0.16 | 0.25 | 1.00 | 10.40 | 26x50C |
| 24x3C | 7x0.20 | 0.25 | 0.80 | 4.20 | 24x3C |
| 24x4C | 7x0.20 | 0.25 | 0.80 | 4.50 | 24x4C |
| 24x5C | 7x0.20 | 0.25 | 0.80 | 4.90 | 24x5C |
| 24x6C | 7x0.20 | 0.25 | 0.80 | 5.20 | 24x6C |
| 24x7C | 7x0.20 | 0.25 | 0.80 | 5.20 | 24x7C |
| 24x8C | 7x0.20 | 0.25 | 0.80 | 5.50 | 24x8C |
| 24x9C | 7x0.20 | 0.25 | 0.80 | 5.80 | 24x9C |
| 24x10C | 7x0.20 | 0.25 | 0.80 | 6.20 | 24x10C |
| 24x15C | 7x0.20 | 0.25 | 0.85 | 6.90 | 24x15C |
| 24x25C | 7x0.20 | 0.25 | 1.00 | 8.60 | 24x25C |
| 24x37C | 7x0.20 | 0.25 | 1.00 | 9.80 | 24x37C |
| 24x50C | 7x0.20 | 0.25 | 1.00 | 11.40 | 24x50C |
| 22x3C | 7x0.25 | 0.25 | 0.80 | 4.70 | 22x3C |
| 22x4C | 7x0.25 | 0.25 | 0.80 | 5.10 | 22x4C |
| 22x5C | 7x0.25 | 0.25 | 0.80 | 5.50 | 22x5C |
| 22x6C | 7x0.25 | 0.25 | 0.80 | 5.80 | 22x6C |
| 22x7C | 7x0.25 | 0.25 | 0.80 | 5.80 | 22x7C |
| 22x8C | 7x0.25 | 0.25 | 0.80 | 6.30 | 22x8C |
| 22x9C | 7x0.25 | 0.25 | 0.80 | 6.70 | 22x9C |
| 22x10C | 7x0.25 | 0.25 | 0.80 | 6.80 | 22x10C |
| 22x15C | 7x0.25 | 0.25 | 0.85 | 7.80 | 22x15C |
| 22x25C | 7x0.25 | 0.25 | 1.00 | 10.00 | 22x25C |
| 22x37C | 7x0.25 | 0.25 | 1.00 | 11.30 | 22x37C |
| 22x50C | 7x0.25 | 0.25 | 1.00 | 12.90 | 22x50C |
| 18x2C | 34x0.18 | 0.4 | 0.80 | 5.80 | 18x2C |
| 18x3C | 34x0.18 | 0.4 | 0.80 | 6.00 | 18x3C |
| 18x4C | 34x0.18 | 0.4 | 0.85 | 7.10 | 18x4C |
| 18x5C | 34x0.18 | 0.4 | 0.85 | 7.30 | 18x5C |
