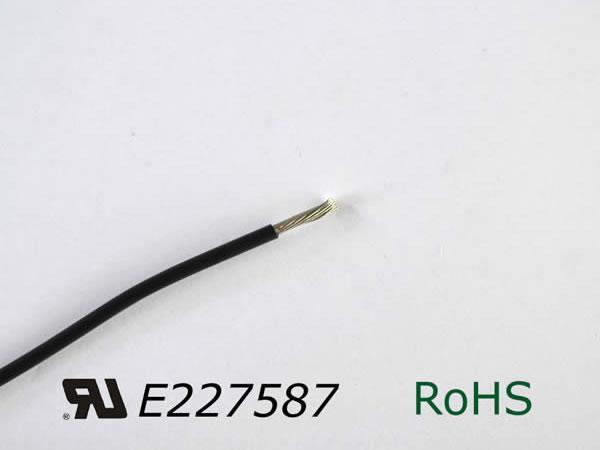

Cable FEP UL 1887
Información detallada
1. Aislante del cable FEP UL 1887: teflón FEP
2. Conductor: cobre desnudo o estañado
3. Voltaje de prueba: 2000V
4. Voltaje nominal: 600V
5. Tolerancia del diámetro exterior: ±0.10mm
6. Rango de temperatura: -100°C~150°C
7. Color: blanco, azul, rojo, negro, café, amarillo, verde, transparente o amarillo/verde
| Conductor | Aislante | Características eléctricas | |||
| Calibre AWG | Construcción del conductor NO.xΦ mm |
Diámetro mm |
Grosor del aislante mm | Diámetro total mm |
Máxima resistencia del conductor a 20 ℃ Ohm/km |
| 24 | 7x0.20 | 0.61 | 0.36 | 1.33 | 94.2 |
| 19x0.12 | 0.60 | 1.33 | 94.2 | ||
| 22 | 7x0.25 | 0.76 | 1.48 | 59.4 | |
| 19x0.15 | 0.76 | 1.48 | 59.4 | ||
| 20 | 7x0.31 | 0.95 | 1.68 | 36.7 | |
| 19x0.19 | 0.96 | 1.68 | 36.7 | ||
| 18 | 7x0.39 | 1.19 | 1.9 | 23.2 | |
| 19x0.235 | 1.18 | 1.9 | 23.2 | ||
| 16 | 7x0.50 | 1.53 | 2.25 | 14.6 | |
| 19x0.30 | 1.51 | 2.25 | 14.6 | ||
| 14 | 19x0.37 | 1.86 | 2.58 | 8.96 | |
| 12 | 19x0.46 | 2.32 | 3.05 | 5.64 | |
| 10 | 37x0.43 | 3.02 | 3.75 | 3.55 | |
| 8 | 70x0.39 | 3.8 | 0.51 | 4.82 | 2.23 |
| 6 | 106x0.40 | 4.7 | 5.73 | 1.41 | |
| 4 | 168x0.40 | 5.9 | 6.92 | 0.88 | |
| 2 | 267x0.40 | 7.5 | 8.52 | 0.56 | |
| 1 | 338x0.40 | 8.5 | 0.76 | 10.0 | 0.44 |
| 1/0 | 426x0.40 | 9.5 | 11.0 | 0.35 | |
| 2/0 | 536x0.40 | 10.7 | 12.2 | 0.28 | |
